PICODRUM
® 45

As Newly developed; a Hybrid product reflecting global customer's requests for easy connection of optical fibers like electric wire extension cables.
Disconnection free/ emergency free in optical fiber even under electric extension wire-like handling. The PICODRUM is designed for preliminary construction and short-distance connection of optical fibers.
Easy portability due to the integration of the PICOCABLE and the PICOFLEC into the PICODRUM eliminates restriction on construction sites.
The combined use of one or more PICODRUMs expands and widens the optical fiber connection area.
Designed to be lightweight, at 10kg, the PICODRUM offers fail-safe and high efficient installation at elevated spots or unstable site.
Standard Specifications
Number of fibers:4(SM/GI)
Optical connector:SC
Drum supporting optical connector:SC
Cable length :Approx.120m
Weight:Approx.10Kg
Specification table
Model PDMS14-120 PDMG14-120
Cable Length(m) 120 120
Fiber Type SM 10/125 GI 50/125
Number of optical fiber 4 4
Connector type SC SC

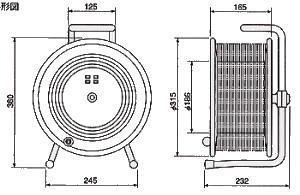

Physical dimensions(mm) 315 x D165 315 x D165
Net Weight(Kg) Approx.10 Approx.10
Main Cable tension Strength (N) Approx.500 Approx.500
Main Cable OD(mm)
(Olefinic Elastomer sheathj
Approx.6.8 Approx.6.8
Options
SC-ST Short Jumper The SC type is a standard version for drum insertion connectors. Short jumpers types other than the SC type are also available.
SC-FC Short Jumper
Typical Application of the PICODRUM
EX1: Preliminary LAN Networking Roundabout routing EX2:Public Communication Line Emergency Recovery Ex3 Outdoor Relay Broadcast Network
