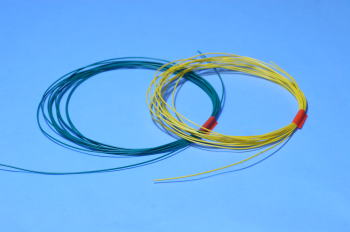

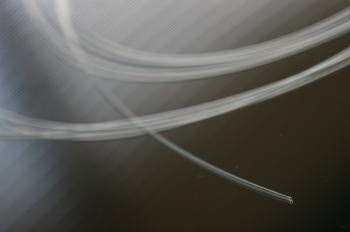

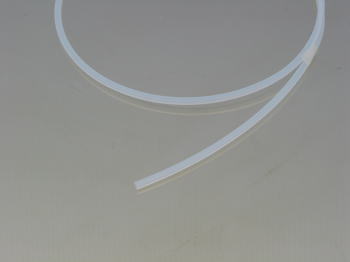

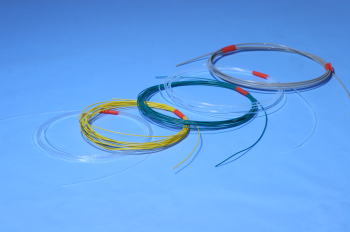

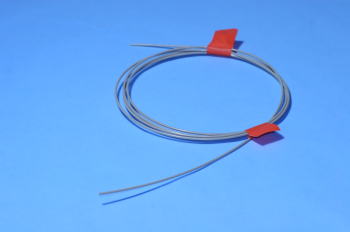

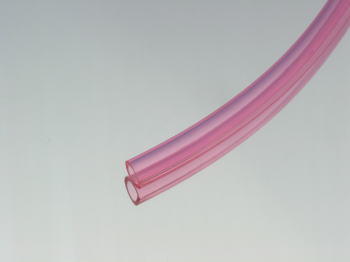

Small Diameter Resin/Rubber Tubes
P21
We will manufacture various resin and rubber tubes in special size upon a request!
Size
I.D.: From 0.05mm up to 25.4mm in increments of 0.1mm

Applications
-Optical fiber protection
-Electrical application
-Air and fluid delivery
-Semiiconductor equipments
-Chemical experimentation
Material Type(Code) Grade Minimum Inner Diameter Features Temperature in use Applications Natural color(available color)
Vynyl Chloride(PVC) Soft 0.4mm- *Pliable
*The most resin for geneeral purpose
*Chemical resistance
-20 to 80 C *Optic fiber protector
*Machine tools
*Medical equipments
Clear, Black
(other color)
Hard -20 to 80 C
Flame resistance -20 to 105 C
Polyester Elastomer(PETP) - 0.15mm- *Greater heat-resistance
*Long lasting
*Resilent
*Flame resistance
-60 to 150 C *Optic fiber protector and etc. Opal,
(in 11 other colors)
Flouracarbon resin PTFE 0.051mm~ *Heat resistance
*Solvent, chemical resistance
-253 to 288 C *Medical, semiconductor, physics & chemical lab equipments Opal,
(Contact with us about other colors)
PFA 0.1mm~ *Heat resistance
*Solvent resistance especially for chemical
*Gas leak proof, High clarity
-253 to 260 C *Medical, semiconductor, physics & chemical lab equipments Translucent(Green, Yellow, Blue, Red and others)
FEP 0.3mm~ *Heat, solvent resistance especially for chemical
*Higher clarity than PFA
*Gas leak proof
-253 to 200 C *Medical, semiconductor, physics & chemical lab equipments Translucent(Green, Yellow, Blue, Red and others)
PVDF 0.5mm~ *Heat and solvent resistance, especially for chemical
*Hight in gas leak proof
-65 to 150 C *Medical equipments Physic & Chemistry lab equipments Translucent
THV200 0.4mm~ *Most pliable in flourine type
*Optimum transference for liquid as in high clarily
-20 to 80 C *Machine tools
*Laboratory equipments
*Medical equipments
Clear
THV400 -20 to 110 C
THV500 -20 to 150 C
Polyamide(PA) 6PA 0.35mm~ *Superior resistance for alkaline
*Weak for acid
*Weather proof
*Outstanding Mechanical Strength
*Slide surface but high in moisture absorption
-40 to 100 C *Optic fiber protector
*Machine tools
*Medical equipments
Opal(Contact with us for other colors)
66PA
11PA
12PA
Polyethylene(PE) Low density
(LDPE)
0.3mm~ *High in chemical resistance
*Slick surface
-20 to 80 C *Medical equipments
*Physics & chemical lab equipments
Opal(Contact us for other colors)
High density
(HDPE)
Polypropylene(PP) - 0.3mm~ *High in chemical resistance
*Slick surface
0 to 100 C *Medical equipments
*Physics & chemical lab equipments
Opal(Contact us for other colors)
Polyetherether Ketone(PEEK) - 0.05mm~ *Radiation and heat resistance
*Sliding surface
*Weak in strong acid.
-250 C *Machine tools
*Optic fiber protector
*Medical equipments
Greyish brown
Other experienced Materials Polyether sulfone(PES), Polyamide imid(PAI), Polyphenylene sulfide(PPS),Polycarbonate(PC), ABS, Acrylic(PMMA), Polyacetar(POM), Poly-butylene terephthalate(PBT) and e.t.c.
