FLEXIBLE CONDUIT
CONNECTORS SMALL DIAMETER TUBE MEDICAL APPRICATION TUBE PICOLOOP

Fiber Protector
Features outstanding durability against
-Impact
-Heat
-Welding Sparks
-Repeated bending
-Lateral Pressure
Combined with the Fiber Protect Connector, a variety of sensors can be completely protected to the sensor head even with applications that require movement.
The Fiber Protector has a variety of models due to the different types of interlocking and meterials that can be used.

Special order products can be produced upon request for various applications.
-Fluids
-Micro-thin
-Torque transmission
-Medical purpose

New Product
As PVC substitute for the fiber protector sheathing material, Olefin Elastomer has been developed.Olefine Elastomer is a cost saving material which provides pliability.
Olefine Elastomer doesn't contain halogen compound and known as ECO FRIENDLY material.

Applications
For protection of Optical Fibers and Sensor Cables, Communication Equipment, Medical Equipment, Commercial Game Machines, Robots, Lightings, Fiber Scopes, Light Guides, Measurement Equipment, Microphone Stands, Underground Protective pipes, Shower Hose, Coverings, Gas Water Heaters and Flexible Outlet Pipes of a Water purifires.
Examples of the application

Insertion
Approximately 1000m of Optical fibers or cables could be insert through the flexible tube using special techniques and coiled on reel.

Color variation of PVC sheathing.
Standard:Glossy or Mat black, Green, Yellow, Blue, Orange, White, Grey, Pink, Red, Clear.
Please specify color after the model number. If there is no color specification, sheathing will be Glossy Black. EXAMPLE: KSP-4N(Pink)

Variation of PVC sheathing.
4-types of PVC sheathing
Tight Fitting KSP-( )N Standard Item. PVC will fill the spiral valley to make the finished surface even and smooth.

Vacuume Sheathing KSP-( )N-B The sheathing will be applied in a vacuum during process. The finished surface will have spiral pattern.
Bagging Sheathing
KSP-( )N-F Sheathing only on the surface of tube and no PVC in the spiral valley, however the surface will be even and smooth.
Heat Shrinking Sheathing KSP-( )N Please contact for the detail



Click here to get all color HAGITEC catalog in PDF*Other window will be open for the catalog*

Casing Tube
Casing Tubes for General Purpose features
-Lightweight
-Pliable
-Non-Stretch
-High pulling load strerngth
-Resists lateral pressure
-Excellent bending characteristics

-Standard items are in stock

Materials
-Flexible tube: Stainless Steel
-Sheathing: Soft Vynil-Chloride(PVC) , Olefin Elastomer (NEW !)

Optional Materials
-Flexible Tube: Titanium, Brass, Copper, Aluminium, Electrogalvazed Copper strip.
-Sheathing:Polyethylene(PE), Silicon Rubber(Si), Fluorocarbon Resin(ETFE.FEP), Stainless Steel Braiding(B),
*For more detail, Click here*
-Sheathing Combinations: Stainless Steel Braiding+PVC, Kevlar+PVC, e.t.c.

Applications
-Optical Fiber and Sensor Cable Protection
-Communication Equipment
-Medical Equipment
-Commercial game machines
-Robots
-Lighting
-Fiber Scopes
-Light Guides
-Mesurement tool
For Apprication Examples CLICK HERE

About Standard Length
Standard length of the tube is approx. 100m and it is consist of two or three shorter length of tubes such as 75m+25m, 45m+55m. Please contact us if you need a tube without connections.

Notes
1.Delivery time will be 14 to 21 days after receiving the order.
2.Processing such as assembling of metal fittings, de-buring, insertion of the optical fibers and cable harness will be done up on request.



Standard type
Specifications and sizes
Standard(mm)
Model# ID +/-0.2 OD +/-0.2 Bending radius +/- 5mm Length(m)
KS-1.2N 1.2+/-0.1 2.3+/-0.1 23 100
KS-1.5N 1.5+/-0.1 2.6+/-0.1 23 100
KS-1.8N 1.8 2.9 23 100
KS-2.2N 2.2 3.4 20 100
KS-2.6N 2.6 3.8 20 100
KS-3N 3.0 4.6 18 100
KS-3.2N 3.2 4.8 18 100
KS-3.5N 3.5 5.0 19 100
KS-4N 4.0 5.6 19 100
KS-5N 5.0 7.0 24 100
KS-5.5N 5.5 7.4 21 100
KS-6N 6.0 8.0 25 100
KS-7N 7.0 9.0 27 100
KS-8N 8.0 10.0 30 100
KS-9N 9.5 12.3 31 50
KS-10N 10.0 12.7 32+/-8 50
KS-11N 11.0 13.7 33+/-8 50
KS-13N 13.0 15.8 31+/-8 50
KS-13.5N 13.5 16.6 35+/-5 50
KS-14N 14.0 16.7+/-0.3 36+/-8 50
KS-15N 15.8+/-0.3 18.9+/-0.3 36+/-10 50
KS-17N 17.0+/-0.3 20.3+/-0.3 40+/-10 50
KS-19N 19.1+/-0.3 22.5+/-0.3 50+/-10 50
KS-22N 20.8+/-0.3 24.8+/-0.5 70+/-15 50
KS-24N 24.0+/-0.3 28.0+/-0.3 95+/-20 50
KS-25N 25.4+/-0.3 29.2+/-0.5 80+/-15 50
KS-28N 26.4+/-0.5 30.9+/-0.5 80+/-15 50
KS-31N 31.8+/-0.5 36.0+/-0.5 90+/-15 30
KS-33N 33.0+/-0.3 37.3+/-0.3 95+/-20 30
KS-36N 35.0+/-0.5 39.5+/-0.5 100+/-15 30
KS-39N 38.1+/-0.8 42.1+/-0.8 110+/-20 30
KS-42N 40.0+/-0.8 44.0+/-0.8 110+/-20 30
KS-51N 50.8+/-0.8 56.8+/-0.8 125+/-30 20
KS-54N 51.3+/-0.8 57.3+/-0.8 125+/-30 20
KS63 to 104N/ Special order
PVC corting type(mm)
Model # OD+/-0.2 Lenght(m)
KSP-1.2N 3.0 100
KSP-1.5N 3.4 100
KSP-1.8N 3.7 100
KSP-2.2N 4.4 100
KSP-2.6N 4.8 100
KSP-3N 6.1 100
KSP-3.2N 6.3 100
KSP-3.5N 6.1 100
KSP-4N 7.0 100
KSP-5N 8.5 100
KSP-5.5N 8.7 100
KSP-6N 9.2 100
KSP-7N 10.0 100
KSP-8N 11.4 100
KSP-9N 14.2+/-0.3 50
KSP-10N 14.7+/-0.3 50
KSP-11N 15.9+/-0.3 50
KSP-13N 17.7+/-0.3 50
KSP-13.5N 18.2 50
KSP-14N 18.7+/-0.3 50
KSP-15N 21.0+/-0.3 50
KSP-17N 21.8+/-0.3 50
KSP-19N 24.5+/-0.3 50
KSP-22N 26.8+/-0.5 50
KSP-24N 29.6+/-0.5 50
KSP-25N 32.0+/-0.5 50
KSP-28N 33.0+/-0.5 50
KSP-31N 39.5+/-0.5 30
KSP-33N 39.1+/-0.5 30
KS-36N 41.8+/-0.5 30
KSP-39N 46.0+/-0.8 30
KSP-42N 48.0+/-0.8 30
KSP-51N 60.8+/-1.0 20
KSP-54N 61.3+/-1.0 20
KSP/ID will be produced up on cusutomers order.


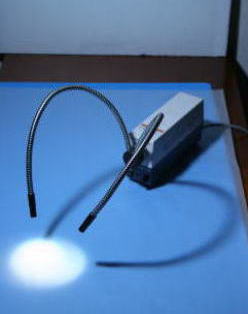

Various Application Examples of Casing Tubes and other products.
Arcade game cables

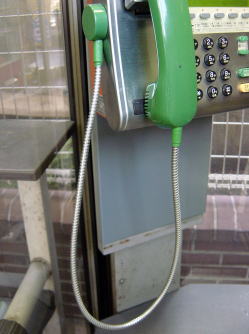

Telephone cable
