Stainless Flexible Protection Tube & Connectors for Optic Fiber and other related materials and accsessories.

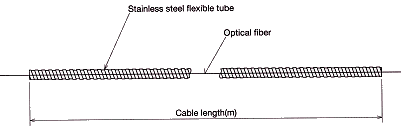

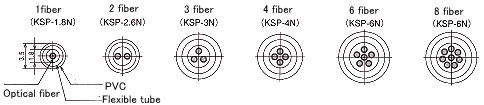

PICOFLEC® /PLC 45 Complete solutions to eliminate the closest possible attention to side pressure, tensile and bending strength.PICOLOOP and connectors are best combined. Using thinned branching tubes and PICOCORD offers minimum space and high mount density anytime. Data of the Typical Characteristics of Optical Fibers Metallic Tube Optical Fiber Cable Our unique stainless steel flexible tube gently safeguards your optical fibers. High tensile strength! Electric cable-like handling and installation. Widest possible applications for heavy duty optical connectors. Stainless Steel tube Stainless Steel Flexible Tube Specification Table No.(Model) 18(KSP-1.8N) 26(KSP-2.6N) 30(KSP-3.0N) 40(KSP-4.0N) 60(KSP-6.0N) Material SUS304*1,PVC coating:PVC coating standard color:black(No PVC type*2) ID(+/-0.2mm) 1.8 2.6 3.0 4.0 6.0 OD(+/-0.2mm) 2.9 3.8 4.6 5.6 8.1 Min.Bending radius(+/-5.0mm) R40 R40 R40 R40 R40 Coating OD(mm) 3.5 4.8 6.0 7.0 10.0 Max.Cable Length(m) 1000 1000 1000 500 500 Permissible side presser(N) 147 147 147 147 147 Permissible side presser (N/50mm) 2450 2450 2450 2450 1470 Aprx. cable weight(Kg/Km) 25kg 30kg 49kg 55kg 90kg *1:For other materials, contact our sales office. *2:The model is designated KS-*.*N. Optical Fiber Insertion Specification Table NO.- 18(KSP-1.8N) 26(KSP-2.6) 30(KSP-3.0N) 40(KSP-4.0N) 60(KSP-6.0N) Optical SM/GI 0.9mm 1 fiber 1-2 fiber 2-3 fiber 2-6 fiber 4-8 fiber 4 fiber ribbon - 1-2 pcs − - - Insert Spec. diagram PICOFLEC Code Table
