Stainless Flexible Protection Tube & Connectors for Optic Fiber and other related materials and accsessories.

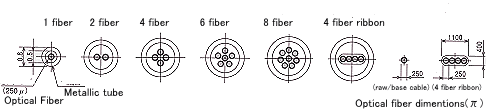

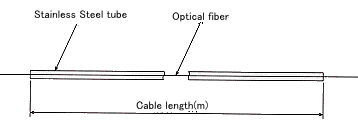

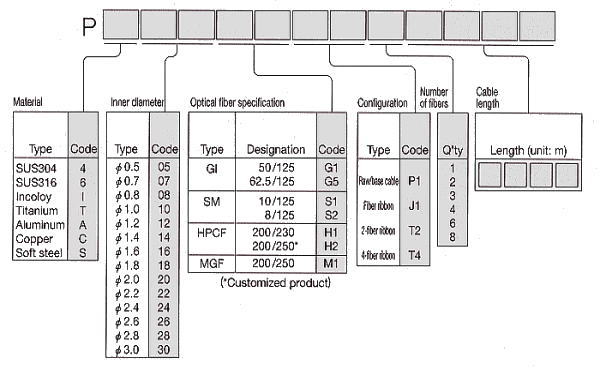

PICOFLEC ®/PICOTUBE® 45 Complete solutions to eliminate the closest possible attention to side pressure, tensile and bending strength. Data of the Typical Characteristics of Optical Fibers Metallic Tube Optical Fiber Cable Our unique stainless steel flexible tube gently safeguards your optical fibers. High tensile strength! Electric cable-like handling and installation. Widest possible applications for heavy duty optical connectors. Semiseamless Stainless Steel Tube Stainless Steel Tube Specification Table No. 5 7 8 10 12 14 16 18 20 22 24 26 28 30 Material SUS304・SUS316*1 ID(mm) 0.5 0.7 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 OD(mm) 0.8 0.9 1.2 1.4 1.6 1.8 2.0 2.2 2.6 2.8 3.0 3.2 3.4 3.6 Wall Thickness(mm) 0.15 0.1 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 Max. Cable Length(m) 3000 3000 3000 3000 3000 3000 3000 3000 2000 2000 2000 2000 2000 2000 Tensil Strength(N) 59 49 118 147 167 196 216 245 421 461 490 529 568 608 Permissible side pressuer (N/50mm) 2.156 1.274 1.960 1.666 1.470 1.274 1.176 980 1.274 1.176 1.176 1.078 980 1.176 Aprx.cable weight (Kg/Km) 2.4 1.9 5.0 6.0 7.0 8.0 8.9 9.9 17.1 18.6 20.1 21.6 23.1 24.6 *1:For other materials, contact our sales office. Optical Fiber Insertion Specification table NO. 5 7 8 10 12 14 16 18 20 22 24 26 28 30 Optical Fiber SM/GI 0.25mm 1 fiber 1fiber 1-2 fiber 1-4 fiber 1-6 fiber 1-6 fiber - - - - - - - - 4 fiber ribbon - - - - - 1pcs - - 2pcs - - - - - 0.5mm fiber ribbon - - - - - - - - 1-2 fiber - - - - - Insertion spec. diagram PICOTUBE CODE TABLE
