HEAVY DUTY CORD TYPE PICOFLEC DETAIL 45
PICOFLEC ®/PLC Series Extremely ideal for high density surface mounts.
Safeguards optical fibers gently by using the PICOCORD that enhances the mount density in the branching tube.
Cord Type MU PICOFLEC
Conforming to JIS F14

@
PLC-MU
MU Connector Housing Cord Type LC PICOFLEC Conforming to JIS F14

PLC-LC
LCMU Connector Housing
Cord Type FC PICOFLEC
Conforming to JIS F01

@

PLC-FC
FC Connector Housing Cord Type SC PICOFLEC Conforming to JIS F04

PLC-SC
SC Connector Housing
Cord Type SC2 PICOFLEC Conforming to JIS F04

PLC-SC2
SC2 Connector Housing

Connector Polishing Specification Table
Optical Fiber SM10/125 GI 50/125,GI 62.5/125
Connector/Polishing Flat PC SPC AdPC Angled PC Flat PC SPC
MU - O O O - - O O
LC - O O O - - O O
FC O O O O O O O O
SC O O O O O O O O
DSC O O O O O O O O
DP O O O O - O O O
ST O O O O - O O O
Insertion Loss or less(db) 1.0 or less 0.5 or less 0.5 or less 0.5 or less 0.5 or less 1.0 or less 0.3 or less 0.5 or less
Reflecion loss or more(db) (14 or morej 25 or more 40 or more 40 or more 60 or more (14 or more) 22 or more 35 or more
Note:For cord with optical fibers, please contact our sales office.
1)Optical Connector
2)Cord bush
3)Splitter
4)Branching tube(PICOCORD)
5)Main Flexible Tube(PICOFLEC)
6)Optical Fiber
7)Protection Cap

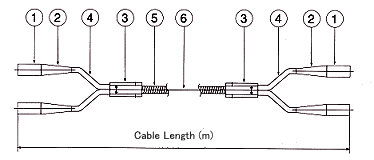

Configuration and Name of Each part

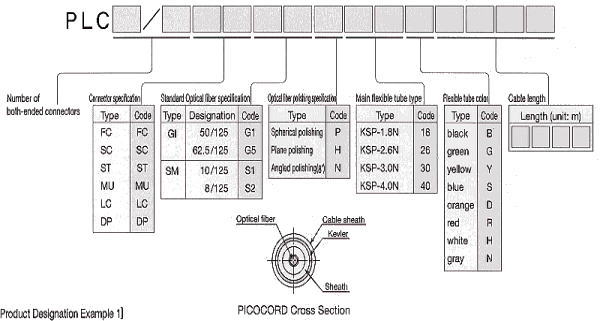

Standard Ordering Code
