PICOCABLE DETAIL 45

2-Cable MPC type and 4-cable MPC type
PICOCUTTER(TYPE SB)
for tubes of 1.0mm to 6mm in diameter
Graph1:Temperature characteristics

Table 1: Characteristics Comparison
. Picocable
(2 cores)
Picocalbe other optical cable (2-core Al wrapped cable
Permissible Tension(Kgf) 100 75
Permissible side Pressure(Kgf/mm) 500/50 100/50
Permissible Bending Radius(mm) 50 100
Cable Outer Diameter(mm) Approx.8.0 Approx.11
Cable weightiKg/Km) Approx75 Approx100

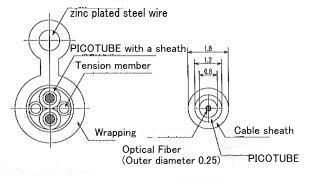

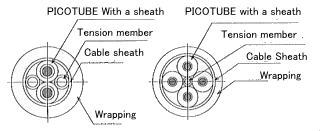

Figure1:Crosssectional view of PICOCABLE
Figure2:PICOTUBE Manufacturing Process
1.... 2..... 3..... 4.....

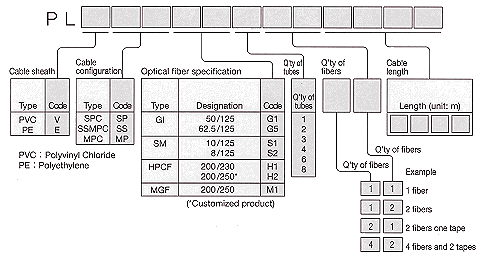

Code Table
