Stainless Steel Spring Tube
P.08
Feature
-It is a tube like a spring wich made with bandle of wires.
-Provides outstanding durability and flexibility.
-Ideal tube for Endoscope.

Materials
-Stainless steel wire.
-The diameter of each wires are 0.15,0.2,0.4,0.45,0.5mm


Applications
-Medical and industrial purpose such as Endoscopes.


Specifications and sizes(mm)

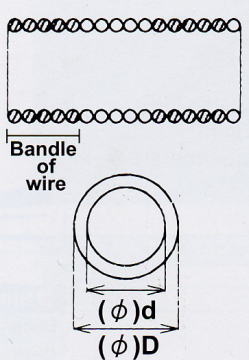

Model ID (d) OD(D) bandle of wire
SP-0.6-1.0-5 0.6 1.0 5
SP-1.0-1.4-5 1.0 1.4 5
SP-1.5-1.9-5 1.5 1.9 5
SP-10-14-5 10.0 14.0 5



Flexible Shaft
P.08
Feature
-Ideal shaft to transfer torque.

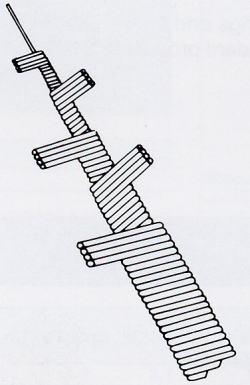

-Thin stainless wire and tick stainless wire are coiled opposit ways to each other and forms shaft.
-Outstanding flexibility and strenght.
- Available in hollow wire type.
-Won't be loosen after cut the shaft with the special finish.

Materials
-Piano wire
-Hard Steel Wire
-Stainless steel

Minimum bending radius in use
-Minimum bending radiusF/R…20 x OD of the shaftiappro.j
-Standard material diameter:
[SUS Steel Wire only]
0.12,0.15,0.18,0.2mm

[Both in Hard Steel Wire & SUS wire] 0.3,0.35,0.4,0.6,0.7,0.8,1.0,1.2,1.4,1.6,1.8,2.0,2.3,2.6,3.2mm

Note
Special Order Product
. Delivery date will be scheduled after receiving the order.

Specifications and sizes(mm)
Model OD Minimum
Bending radius
Weithg(kg/m)
FS-3 3 50mm 0.044
FS-4 4 60 0.078
FS-5 5 60 0.123
FS-6 6 100 0.168
FS-8 8 130 0.329
FS-10 10 150 0.48
FS-13 13 180 0.83
FS-15 15 250 1.08
